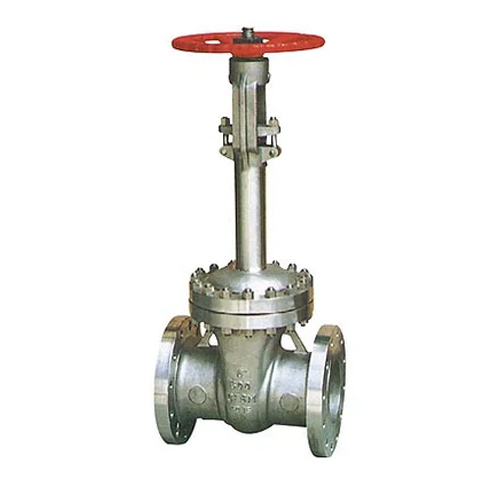

The API Cryogenic Gate Valve is a specialized valve designed specifically for cryogenic applications. It is built to withstand the extreme low temperatures and unique challenges associated with handling cryogenic fluids and gases.
| Standard | API 600 |
|---|---|
| Class | 150 lb-600 lb |
| Material | Stainless Steel |
| Test and inspection | API 598 |
These valves are equipped with extended bonnets, which are customized based on customer specifications. The extended bonnet design ensures that the stem packing remains functional by keeping it at a sufficient distance from the cold fluid. This feature is crucial to maintain the valve’s performance and prevent freezing or damage in cryogenic environments.
Class | in | DN | Unit | L | H Open | D | D1 | D2 | b | Z-Φd | D0 |
150Lb | 2 | 50 | in | 7.00 | 16.10 | 6.00 | 4.75 | 3.62 | 0.75 | 4-0.75 | 8.00 |
mm | 178 | 409 | 152 | 120.5 | 92 | 19.1 | 4-19 | 200 | |||
36 | 900 | in | 28.00 | 147.00 | 46.00 | 42.75 | 40.25 | 3.56 | 32-1.62 | 36.00 | |
mm | 711 | 3737 | 1170 | 1086 | 1022 | 90.5 | 32-41 | 915 | |||
300Lb | 2 | 50 | in | 8.50 | 16.70 | 6.5 | 5.00 | 3.62 | 0.88 | 8-0.75 | 8.0 |
mm | 216 | 424 | 165 | 127 | 92 | 22.3 | 8-19 | 200 | |||
24 | 600 | in | 45.00 | 100.50 | 36.0 | 32.0 | 27.25 | 2.75 | 24-1.62 | 36 | |
mm | 1143 | 2553 | 914 | 813 | 692 | 69.9 | 24-41 | 915 | |||
600Lb | 2 | 50 | in | 11.50 | 18 | 6.5 | 5.00 | 3.62 | 1.0 | 8-0.75 | 10 |
mm | 292 | 458 | 165 | 127 | 92 | 25.4 | 8-19 | 250 | |||
24 | 600 | in | 55 | 107.5 | 37 | 33.0 | 27.25 | 4.0 | 24-2.0 | 39.4 | |
mm | 1397 | 2730 | 940 | 838 | 692 | 102 | 24-51 | 1000 |
