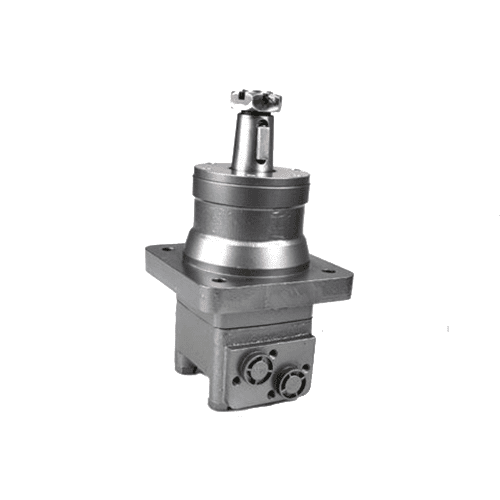

BMT Orbital Hydraulic Motor

About product

Experience the pinnacle of hydraulic motor technology with our BMT Orbital Hydraulic Motor. Its advanced Geroler gear set design, combined with a robust output shaft and optimized disc distribution flow, ensures unmatched performance and versatility. Whatever your application demands, this ship motor rises to the occasion, delivering exceptional results every time.

  • Revolutionary Geroler Gear Set Redefining Excellence
  • Unyielding Strength with a Robust Output Shaft
  • Seamless Flow Optimization with Disc Distribution Mastery

Additional information

Displacement

160/200/230/250/315/400/500/630/800

Flow

125-150 LPM

Product NO

BMT/OMT

Product Detail

Ship Motor Features – BMT Orbital Hydraulic Motor

Key features of the BMT Ship Motor include:

  • Advanced Geroler Gear Set: The ship motor incorporates a state-of-the-art Geroler gear set, allowing for smooth and reliable operation, high efficiency, and low-pressure startup.
  • Robust Output Shaft: Equipped with tapered roller bearings, the output shaft can withstand high axial and radial forces, making it suitable for applications that require high pressure and torque.
  • Disc Distribution Flow: The motor utilizes an innovative disc distribution flow design. This feature enables automatic compensation, ensuring optimal operating conditions, high volume efficiency, and extended service life.

BMT Orbital Hydraulic Motor Installation

When installing the BMT Orbital Hydraulic Motor, it is important to follow these guidelines:

  • Motor Inspection: Prior to installation, conduct a thorough examination of the ship motor to identify any potential damages. In cases where the motor has been stored for an extended period, it is advisable to drain and rinse the stored oil to prevent the internal moving parts of the ship motor from sticking.
  • Mounting Bracket: Ensure that the orbital hydraulic motor mounting bracket offers sufficient rigidity to withstand shock and vibration during operation.
  • Even Tightening: When securing the motor with mounting bolts, tighten them evenly to ensure proper and secure attachment.
  • Drain Pipe Connection: The BMR motor has built-in check valves. If the oil return pressure is ≤1Mpa, there is no need to connect a drain pipe. However, if the oil return pressure exceeds 1Mpa, a drain pipe must be connected as per the provided drain pipe location diagram.
  • Low-Speed Stability: If the motor exhibits instability at low speeds, apply back pressure of at least 0.2Mpa to eliminate the issue.
  • Pump Working Conditions: The ship motor should not be operated under pump working conditions, nor should it be used as a pump.
  • Surface and Flange: Ensure the installation surface is flat and determine accurate connection flange, stop, and output connection shaft sizes.
  • Concentricity: Ensure good concentricity between the output shaft and the device connected to the transmission. Prevent axial thrust of the output shaft and interlocking device during output shaft installation. Note that the BMR motor can bear a small radial force.
  • Protect Oil Sealing: During installation, protect the smoothness and parallelism of the connecting plate part of the oil inlet and outlet to prevent any damage that could lead to oil leakage.
  • Handling and Removal: Avoid hitting the screws and rear cover of the motor during installation. If tapping is required, do it on the mounting flange. Do not force or twist the motor during installation.
  • Plastic Plugs: Until the ship motor installation is fully completed, it is important to refrain from removing the plastic plugs located above the pipelines and oil pipes.

Orbital Hydraulic Motor Parameter –  BMT Series

Type

BMT 160

BMT 200

BMT 230

BMT 250

BMT 315

BMT 400

BMT 500

BMT 630

BMT 800

Geometric displacement(cm³/rev)

161.1

201.4

232.5

251.8

326.3

410.9

523.6

629.1

801.8

Max.speed/rpm

Rated

470

475

412

381

294

228

183

150

121

Continuous

625

625

536

500

380

305

240

196

154

Intermittent

780

750

643

600

460

365

285

233

185

Max.torque(N.m)

Rated

379

471

530

582

758

896

1063

1156

1207

Continuous

470

590

670

730

950

1080

1220

1318

1464

Intermittent

560

710

821

880

1140

1260

1370

1498

1520

Peak value

669

838

958

1036

1346.3

1450.3

1643.8

1618.8

1665

Max.output(KW)

Rated

18.7

23.4

23.2

23.2

23.2

21.4

20.4

18.2

15.3

Continuous

27.7

34.9

34.7

34.5

34.9

31.2

28.8

25.3

22.2

Intermittent

32

40

40

40

40

35

35

27.5

26.8

Max.pressure difference/Mpa

Rated

16

16

16

16

16

15

14

12

10.5

Continuous

20

20

20

20

20

18

16

14

12.5

Intermittent

24

24

24

24

24

21

18

16

13

Peak value

28

28

28

28

28

24

21

19

16

Max.inlet(L/min)

Rated

80

100

100

100

100

100

100

100

100

Continuous

100

125

125

125

125

125

125

125

125

Intermittent

125

150

150

150

150

150

150

150

150

Max.inlet pressure/Mpa

Rated

21

21

21

21

21

21

21

21

21

Continuous

21

21

21

21

21

21

21

21

21

Intermittent

25

25

25

25

25

25

25

25

25

Peak value

30

30

30

30

30

30

30

30

30

Weight/kg

19.5

20

20.4

20.5

21

22

23

24

25
