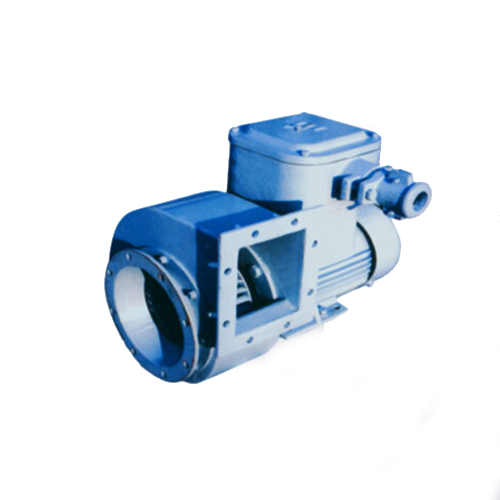

CBL Marine Explosion Proof Centrifugal Fan

Category

About product

Our CBL Marine fan is engineered to be explosion-proof, providing utmost protection in volatile conditions. Its robust construction and advanced safety features guarantee secure and reliable operation in hazardous areas.

  • With outstanding anti-corrosion performance, this fan is built to withstand the corrosive effects of marine environments, ensuring long-lasting durability and reliability.
  • To enhance stability and minimize disturbances, the CBL Marine fan incorporates sound anti-wobble, anti-vibration, and anti-impact performance. This ensures smooth operation and maximizes overall performance.

Additional information

Ambient temperatures:

-25℃~﹢50℃

Relative humidity of the air:

≤95%

Cyclical vacillation:

22.5 ~45(vacillation cycle 5~10S)

Sustained horizontal tilting:

15°

Sustained vertical tilting:

10°

Vibration:

existence

Shock:

existence

Product Detail

Professional Centrifugal Fan Manufacturer

Zava Marine is a leading professional centrifugal fan manufacturer, specializing in high-quality fan systems for various marine applications. Trust us for reliable and efficient centrifugal fans that meet your specific requirements. Contact us now for your centrifugal fan needs.

The explosion-proof grade of CBL series centrifugal fan (hereinafter referred to as EPCV’s) is dll BT4-dlICT5, They can carry away gas mixtures or vapor-containing combustibles, and explosives, ordinary air, sea air containing salt fog and other corrosives. The EPCV’s apply to the removal of flammable, explosive mixture a nd steam in such locations as oil holds, cargo holds, pump rooms, battery rooms, ammunition cabins, airplane hangars, and paint rooms. Besides, EPCV’s also apply to the ventilation in other cabins on vessels as well as practicable locations on land. EPCV’s are driven by either 380 V 50HZ or 440V 60HZ marine explosion-proof use three-phase induction motors.

Type Of CBL Marine Explosion Proof Centrifugal Fan

The CBL Marine Explosion-Proof Centrifugal Fan is available in two structural types: Type I (direct connection) and Type II (partition). The overall design of the marine fan ensures it is fire-resistant.

Type I features an explosion-proof motor with a direct drive structure, where the marine fan blade is directly connected to the motor shaft. The fan casing is securely fixed onto the flange of the explosion-proof motor.

Type II incorporates a compartment structure for both the marine fan and motor. It includes components such as the fan, transmission system, elastic coupling, and motor. The transmission group consists of a bearing seat, bearing, shaft, copper ring, and sealing stuffing box. This type allows for temperature measurement and refueling. One end of the transmission system is directly connected to the explosion-proof fan, while the other end connects to the bulkhead.

CBL-15 Marine Explosion Proof Centrifugal Fan Parameter

Model

Flow Rate(m³/h)

Total Pressure/Pa

Static Pressure/Pa

Speed(r/min)

Motor

Freq/Hz

Power

Type I

Type II

CBL-15

500

549(60)

490(50)

2920

50

0.75

1.5

CBL-15

800

539(55)

392(40)

0.75

1.5

CBL-15

600

784(80)

588(60)

3500

60

0.75

1.5

CBL-15

960

647(66)

470(48)

0.75

1.5
