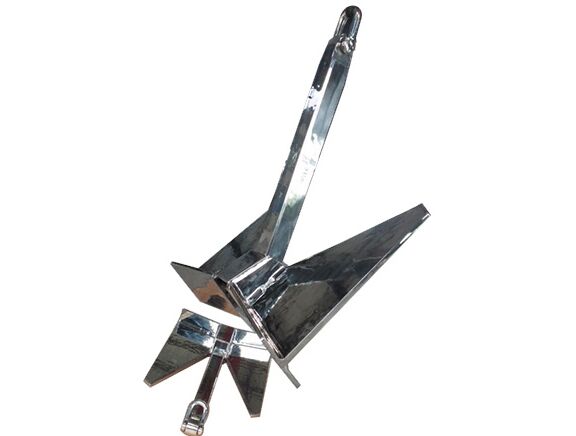

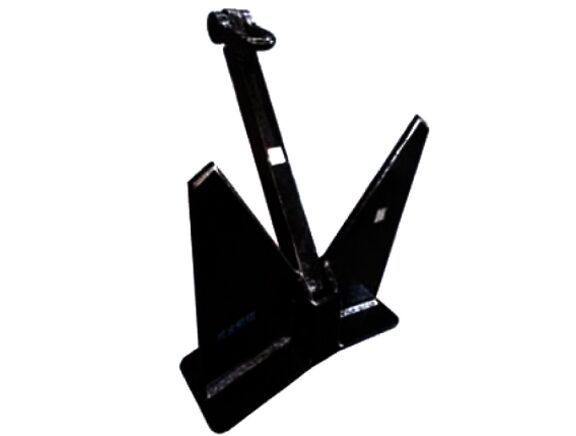

CJT-20 HHP Ship Anchor

Category

About product

The CJT-20 HHP Pool Anchor is a specific variant of the HHP TW Anchor, known for its high holding power and unique design features. It is constructed with a large flat anchor rod made of high-strength steel plate material, which can range in thickness from 15 mm to 140 mm, depending on the anchor size.

  • Weight reduction of 25% compared to conventional marine anchors
  • high tensile steel plate material
  • Sharp points and edges for quick and efficient penetration.
  • Optional 10% shortened shank.

Additional information

Material

Q345C, ZG230-45CH, Stainless Steel 316L

Weight

105kg to 20,000kg

Finishing

black painting, hot dip galvanized

Certification

CCS,ABS,BV,LR,DNV-GL,KR,RMRS

Anchor Type

Pool anchor

Product Detail

Marine CJT-20 HHP Pool Anchor for Sale

The marine CJT-20 High Holding Power Anchor is renowned for its exceptional grasping ability, surpassing the holding capacity of standard rodless anchors by at least twice the mass. It offers the advantage of being up to 25% lighter in weight and can be supplied with a 10% reduction in shank size. CJT-20 pool anchor’s large flat anchor rod ensures effective penetration into the seabed or pool floor, increasing stability and preventing displacement.

In fully balanced models, the flukes of the CJT-20 HHP Anchor always return to their upright position, preventing the ship anchor from getting stuck in the anchor pocket. The end shape of the shank can be customized to accommodate various types and dimensions of connections, ensuring versatility and compatibility with different vessel configurations

Marine Pool Anchor Functions

  • Secure Vessel Position: The primary function of a pool anchor is to secure the vessel in a specific location, such as a port, harbor, or anchorage. The high holding power anchor, when properly deployed and set, provides a reliable and stable point of attachment for the vessel, preventing it from drifting or being carried away by wind, waves, or currents.
  • Maintain Stationary Position: Ships often need to remain stationary for various reasons, such as loading/unloading cargo, passenger embarkation/disembarkation, or waiting for berth availability. This ship anchor helps maintain the ship’s position and prevents it from drifting, allowing for safe and controlled operations.
  • Distribute Mooring Load: Pool anchors play a critical role in distributing the forces exerted on the ship during mooring. They help transfer these forces to the seabed or mooring system, thereby reducing stress on the ship’s hull and mooring lines. This ensures the vessel remains stable and minimizes the risk of damage or accidents.
  • Provide Holding Power: Pool anchors are designed to provide significant holding power, allowing them to resist external forces and hold the ship firmly in place. The anchor’s design, weight, and holding capacity are carefully calculated to match the vessel’s size, environmental conditions, and seabed characteristics.

Marine CJT-20 Pool Anchor Drawing

cjt 20 hhp anchor

The Features Of Our CJT-20 HHP Anchor

  • Weight reduction of 25% compared to conventional anchors.
  • Constructed from high tensile steel plate material (Stainless Steel 316L) with a mirror-polished finish.
  • Large flat flukes and a crown plate prevent excessive digging.
  • Sharp points and edges for quick and efficient penetration.
  • Provides good stability and high soil meshing ability.
  • Requires low transverse lifting force.
  • Easy anchoring and collection operations.
  • Available in fully balanced and standard configurations.
  • Optional 10% shortened shank.

CJT-20 Cargo Ship Anchor Size

  • Other sizes of CJT-20 Pool Anchor is upon request.

Nominal Weight/kg

A/mm

A1/mm

B/mm

C/mm

D/mm

E/mm

Shackle Model

105

640

650

250

422

240

705

a6

225

825

837

324

545

310

982

a8

360

965

980

378

638

362

1175

a9

495

1074

1090

420

709

402

1257

a10

855

1306

1327

494

866

496

1575

a13

1305

1490

1512

580

981

558

1814

a14

2295

1802

1829

686

1205

678

2190

a16

3240

2036

2066

770

1351

768

2456

a18

4210

2218

2251

842

1478

838

2680

a20

5175

2334

2367

889

1558

876

2829

a22

6225

2509

2543

980

1640

940

3033

a23

8420

2794

2822

1087

1838

1049

3381

a24

9340

2885

2914

1122

1898

1083

3491

a25

11365

3063

3094

1192

2015

1150

3706

a27

12075

3124

3155

1215

2055

1173

3780

a28

14850

3350

3384

1303

2204

1258

4054

a30

16840

3520

3555

1369

2315

1322

4259

a31

18680

3634

3670

1414

2390

1365

4397

a32

20000371337501444244213944493a33
