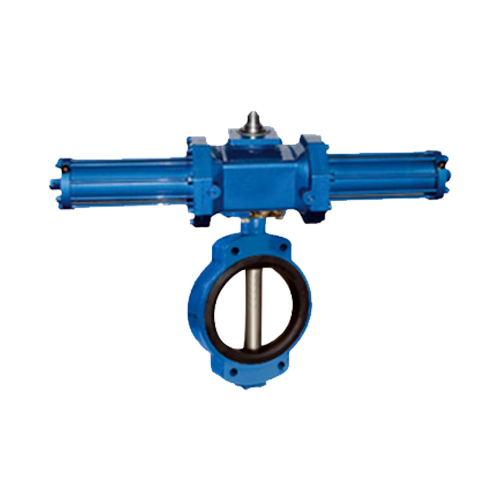

Marine Central Hydraulic Control Butterfly Valve

About product

A marine central hydraulic control butterfly valve is a type of hydraulic actuator valve specifically designed for marine applications. It is used to regulate the flow of fluids, such as water or fuel, in various marine systems on ships and offshore platforms.

This hydraulic actuator valve consists of a circular disc, known as the butterfly, which is connected to a stem in the center. The hydraulic actuator is mounted on the valve body and connected to the stem. This actuator utilizes hydraulic pressure to rotate the stem and control the positioning of the valve disc.

The hydraulic actuator valve offers precise control over fluid flow. By adjusting the hydraulic pressure, the actuator can open, close, or modulate the hydraulic valve, allowing for accurate flow rate regulation.

Additional information

Standard

CB/T4333-201

Nominal Pressure

10kgf/cm2 (0.98Mpa)

Seal Pressure

15.4kgf/cm2 (1.51Mpa)

Intensity Pressure

21kgf/cm2 (2.06Mpa)

Product Detail

Marine Central Hydraulic Valve For Sale

One of the key advantages of this hydraulic actuator valve is its remote operation capability. It can be controlled from a centralized location, such as a control room on the ship or platform, making it convenient for monitoring and adjusting the hydraulic valve’s position and flow rate.

In marine environments, where corrosion is a significant concern, these hydraulic butterfly actuator valves are constructed from corrosion-resistant materials such as stainless steel or bronze. This ensures their durability and ability to withstand the harsh conditions encountered at sea, including exposure to saltwater.

The hydraulic actuator valves find application in various marine systems, including cooling systems, ballast systems, fuel transfer systems, and firefighting systems. Their reliable flow control, ease of operation, and ability to withstand the marine environment make them suitable for use in demanding marine applications.

What’s A Hydraulic Valve Actuator?

The hydraulic valve actuator for marine valves is a vital component specifically designed for marine applications. It converts hydraulic energy into mechanical force or motion to operate and control marine valves effectively. Constructed to withstand the harsh and corrosive conditions of marine environments, these actuators are engineered with durability in mind.

Comprising a hydraulic cylinder, pistons, seals, and control components, the hydraulic valve actuator connects to the marine valve and receives pressurized hydraulic fluid from a hydraulic power source. By controlling the flow of hydraulic fluid, the actuator generates the necessary force or motion to actuate the marine valve, enabling precise flow control.

Parameter Of Hydraulic Actuator Valve – Central Hydraulic Control Butterfly Valve

Nominal Pressure (Mpa)

Nominal Diameter

Structure & Flange Dimension

Hole Of Nut

ISO(GB2501-89)

JIS

GB(GB569-55)

ISO

JIS

GB

L

D

D1

L

D

D1

L

D

D1

n

Th

n

Th

n

Th

1.0

50

43

165

125

43

155

120

43

135

103

4

8

4

19

6

16

80

46

200

160

46

185

150

46

170

138

8

18

8

19

8

16

150

56

285

240

56

280

240

56

240

208

8

M20

8

M20

12

M14

250

68

395

350

68

400

355

68

380

336

12

M20

12

M22

14

M20

350

78

505

460

78

490

445

78

485

441

16

M20

16

M22

18

M20

450

114

615

565

114

620

565

114

600

551

20

M24

20

M24

20

M24

600

154

780

725

154

795

730

20

M27

24

M30
