Marine Electric Mooring Winch

Category

About product

The marine electric mooring winch, categorized as a marine electric winch, serves as a versatile and electrically powered device extensively employed on vessels and ships. It efficiently handles the throwing out and pulling in of cable, rope, or rope with a chain to secure the vessel to docks or other ships, preventing drifting and ensuring safe mooring. Additionally, this mooring winch can perform other tasks such as loading and unloading weights, adding to its functionality and utility.

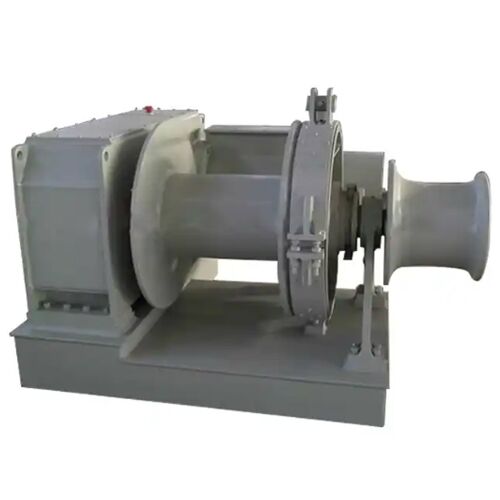

marine electric mooring winch

Additional information

Certification

CCS, BV, ABS, NK, GL, DNV, RINA, RS, IRS

Drum Type

Single drum/ double drum

Driven Type

Electric

Power

380v/50Hz, 440v/60Hz

Pull load at first layer of drum

5kN – 2000kN

Mooring speed at first layer of drum

15m/min or custom designed

Product Detail

The Components Of Marine Electric Mooring Winch

The marine electric mooring winch consists of essential components such as an electric motor, gearbox, mooring drum, optional warping head, gypsy wheel (for combined winches), clutch unit, and brake system (including manual and hydraulic types). Powered by the electric motor, the winch drum winds rope or steel wire rope during mooring operations. A manual brake is positioned between the motor and input shaft, and an optional individual hydraulic brake for the electric motor can be incorporated upon request. These winches are typically designed with one or two mooring drums for regular functionality.

Marine Electric Mooring Winch Features

  • Various Control Options: Marine electric winch for mooring offers a range of control options, allowing for flexible and precise operation. This include manual controls, remote control systems, or integrated control panels.
  • Drive Failure Braking Protection System: This type of mooring winch is equipped with a braking system that activates in the event of a drive failure. This ensures the vessel remains securely moored and prevents unintended movement.
  • Continuous Welding Throughout: The electric marine winch is constructed using continuous welding techniques, ensuring strong and reliable joints throughout its structure. This enhances the winch’s durability and resistance to stress and vibrations.
  • Epoxy Zinc Rich Primer Marine Coating: The marine electric winch is coated with a specially formulated epoxy zinc-rich primer, tailored to withstand the challenges of marine environments. This coating provides excellent corrosion resistance, extending the lifespan of the electric marine winch and protecting it from harsh marine conditions.

Marine Electric Mooring Winch Drawing

marine electric mooring winch marine electric mooring winch marine electric mooring winch

Marine Electric Mooring Winch Parameter

Rated Pull/KN

Rated Speed(m/min)

Drum Capacity/m

Motor Power/Kw

5

≥12

φ8*100

3/1.2

30

≥15

φ17*150

11/11/7.5

50

≥15

φ20.5*180

30/30/22

80

≥15

φ26*200

45/45/30

100

≥15

φ30*200

45/45/30

160

≥15

φ32*250

45/45/30

250

≥9.6

φ44.5*250

50/50/45

315

≥7.8

φ52*250

60/60/45

500

≥7.8

φ58*250

85/85/64

650

≥6

φ70*250

85/85/65

1000

≥4

φ85*250

58/85/65

1500

≥4

φ95*250

150/150/75

2000

≥4

φ100*250

180/18/135
