Marine Lighted Tip Toggle Switch

Category

About product

Marine Lighted Tip Toggle Switch, a reliable and durable solution for marine electrical control. This switch is specifically designed to withstand the harsh conditions of the marine environment, ensuring long-lasting performance.

Constructed with a combination of stamped brass, injection molded nylon, and polycarbonate materials, this switch offers excellent durability and resistance to corrosion. It is built to handle the challenges of moisture, saltwater, and vibrations commonly encountered at sea.

Additional information

Material

stamped brass, injection molded nylon,polycarbonate

Volt

12 volt

Type

Toggle Switch With Lighted Tip

Product Detail

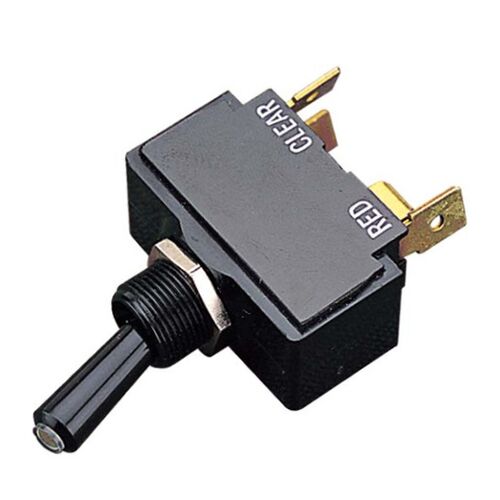

The toggle bat of this switch features a unique lighted tip, providing a visual indication of its status. When in the off position, the tip illuminates in white, and when turned on, it emits a vibrant red glow, making it easy to identify the switch’s state at a glance.

Installation is simple and convenient, as it fits panels up to 1/4″ thick and requires a 15/32″ mounting hole. This versatile switch is designed to seamlessly integrate into your marine electrical system.

With a rating of 15 Amps at 12 Volts DC, it can handle a variety of electrical loads, providing reliable power control for your marine applications.

To further enhance its water resistance, this switch features a locking ring and lever seal, adding an extra layer of protection against water penetration. You can trust this switch to perform reliably even in wet conditions.

Lighted Tip Toggle Switch Types

Lighted tip toggle switches come in various types to suit different electrical control needs. Here are the common types of lighted tip toggle switches:

  • On-Off SPST (Single-Pole, Single-Throw): This type of lighted tip toggle switch has two positions – on and off. It controls the connection of a single circuit.
  • On-Off-On SPDT (Single-Pole, Double-Throw): This lighted tip toggle switch has three positions – on, off, and on. It allows the user to choose between two different circuits or connections.
  • Mom On-Off-On SPDT (Single-Pole, Double-Throw): This lighted tip toggle switch is spring-loaded or momentary. It returns to the center off position when released and has two on positions for two different circuits or connections.
  • On-Off-On DPDT (Double-Pole, Double-Throw): This lighted tip toggle switch has two sets of contacts and can control two separate circuits. It offers three positions – on, off, and on, allowing for different combinations of connections.

How To Install This Marine Toggle Switch

  • Installing Marine Lighted Tip Toggle Switches requires attention to detail and following the provided wiring diagrams and instructions.



Marine Lighted Tip Toggle Switch Parameter

No.

Circuit

Terminals

Amps

Volts

"A"

"B"

420121-1

SPST

4 Blades

15A

12V

3/8"

1/2"

420122-1

SPST

4 Blades

15A

12V

3/8"

1/2"

420123-1

SPDT

5 Blades

15A

12V

3/8"

1/2"

420124-1

SPDT

5 Blades

15A

12V

3/8"

1/2"

420125-1

SPDT

5 Blades

15A

12V

3/8"

1/2"

420128-1

DPDT

8 Blades

15A

12V

3/8"

1/2"

420120-1

DPDT

8 Blades

15A

12V

3/8"

1/2"
