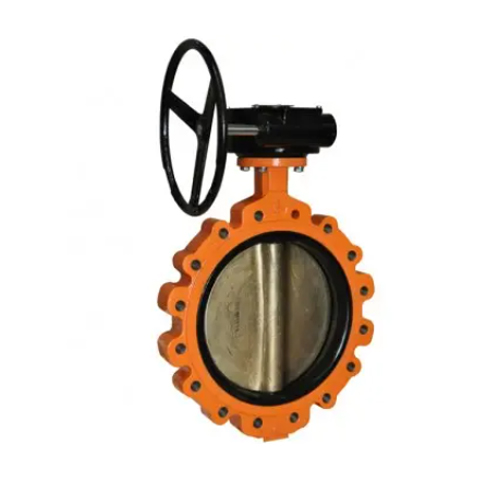

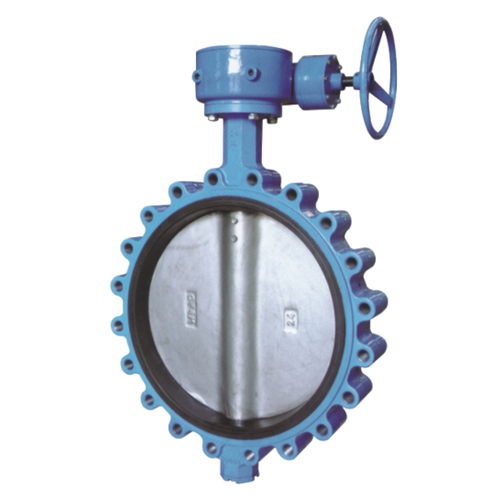

Marine MD Series Lug Type Butterfly Valve

About product

The Marine MD series lug type butterfly valve is specifically designed for marine applications, offering a range of convenient features. This lug butterfly valve allows for online repair of downstream pipelines and equipment, eliminating the need for system shutdowns and minimizing downtime. Additionally, it can be installed on pipe ends as an exhaust valve, providing a simple solution for pressure release or gas venting. The lugged body alignment feature makes installation between pipeline flanges easy and efficient, resulting in time and cost savings. With its practical design and versatile functionality, the MD series lug type butterfly valve is an ideal choice for reliable fluid control in marine environments.

Additional information

Type

Lug type

Size

DN 50~DN600

Pressure

PN10/PN16/150 psi/200 psi

Face to face Standard

EN558-1 Series 20,API609

Product Detail

Exhaust Butterfly Valve – MD Series Lug Type Butterfly Valve

The MD series lug type butterfly valve, specifically designed as an exhaust butterfly valve, is indeed an excellent choice for marine applications. Its versatility and range of options make it well-suited for meeting various system requirements.

With a size range from DN 50 to DN 600, the exhaust valve offers flexibility in terms of accommodating different pipe sizes commonly found in marine exhaust systems. This wide size range ensures that you can select the appropriate valve size to match your specific application.

Furthermore, the exhaust valve is available with different pressure options, including PN10, PN16, 150 psi, or 200 psi. This allows you to choose the pressure rating that aligns with the requirements of your marine system, providing the necessary strength and durability to handle the exhaust gases effectively.

Ship MD Series Lug Type Butterfly Valve Features

  • Compact and Lightweight: This exhaust butterfly valve is small in size, light in weight, and easy to handle. It allows for convenient installation and maintenance while saving space in the system.
  • Quick Operation: The simple and compact structure enables a quick 90-degree on-off operation, facilitating efficient flow control.
  • Reliable Seal: The disc of the exhaust butterfly valve has a two-way bearing, ensuring a perfect seal and preventing leakage even under pressure tests.
  • Precise Regulation: The flow curve of the exhaust valve tends to be a straight line, providing excellent regulation performance for precise control of the media flow.
  • Material Versatility: The exhaust valve is available in various materials, allowing it to be used with different types of media, enhancing its versatility.
  • Resilient Design: It is designed to withstand harsh conditions, featuring strong wash and brush resistance, making it suitable for challenging working environments.
  • Low Torque Requirement: The center plate structure of the exhaust butterfly valve ensures low torque is needed for opening and closing, reducing energy consumption.
  • Long Service Life: The lug butterfly valve is built to withstand frequent use, withstanding thousands of opening and closing operations while maintaining its performance.
  • Cutting-off and Regulation: The exhaust valve can be used for both cutting off and regulating media, providing flexibility in its application.

Parameter Of MD Series Marine Butterfly Valve

Size/mm

Size/inch

A

B

C

D

L

H

D1

n-M

K

E

n1-Φ1

Φ2

G

J

X

f

Weight/kg

50

2

161

80

43

52.9

32

88.38

125

4-M16

77

57.15

4-6.7

12.6

155

13.8

3

13

3.8

100

4

200

114

52.07

104

32

68.88

180

8-M16

92

69.85

4-10.3

15.77

220

17.77

5

13

9

150

6

226

139

55.75

155.6

32

91.84

240

8-M20

92

69.85

4-10.3

18.92

285

20.92

5

13

14.2

200

8

260

175

60.58

202.5

45

112.89

295

8-M20

115

88.9

4-14.3

22.1

339

24.1

5

13

18.2

76.35

12-M20

350

14

368

267

76.17

333.3

45

89.74

460

16-M20

140

107.95

4-14.3

31.6

515

34.6

8

20

56

91.69

470

16-M24

450

18

422

328

104.6

440.51

51.2

88.38

565

20-M24

197

158.75

4-20.6

37.95

627

41

10

20

122

72

91.51

585

20-M27

600

24

562

459

151.36

592.5

70.2

113.42

725

20-M27

276

215.9

4-22.2

50.65

821

54.65

16

22

270

82

-

770

20-M33
