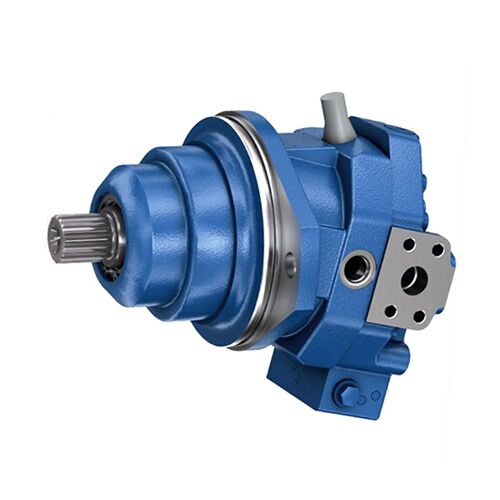

Marine Rexroth Hydraulic Motor

Marine Rexroth Hydraulic Motor Parameter

Marine A2F Series Rexroth Hydraulic Motor

In our Marine Bosch Rexroth Hydraulic Motor collection, we present the A2F Series, encompassing marine hydraulic motors like the A2F, A2FM, and A2FE models.

A2FM Series Rexroth Hydraulic Motor

The Rexroth A2FM Series Hydraulic Motor is available in various sizes with different nominal and peak pressure ratings:

• Sizes 5: 315/350 bar
• Sizes 10 to 200: 400/450 bar
• Sizes 250 to 1000: 350/400 bar

These fixed motors feature an axial tapered piston rotary group with a bent axis design, suitable for hydrostatic drives in both open and closed circuits. They are designed for applications in mobile and stationary settings. The motor’s output speed is determined by the pump’s flow rate and the motor’s displacement. Output torque increases with the pressure difference between the high and low-pressure sides and with increasing displacement. By carefully selecting from the range of displacements available, these motors can be matched to a wide range of applications.

A2FM Series Hydraulic Motor Model Type Indication

A2FM Series Rexroth Hydraulic Motor Axial Piston Unit Layout

Marine Bosch Rexroth Hydraulic Motor – A6V Series

Within our Marine Rexroth Hydraulic Motor lineup, we provide the A6V Series, offering various model types such as A6V, A6VM, and A6VE.

Bosch Rexroth A6V Series Hydraulic Motor Specific Model Types

Rexroth A6VM Series Hydraulic Motor

For the Marine Bosch Rexroth A6VM Series Hydraulic Motor, we offer sizes ranging from NG60 to NG280, with a nominal pressure of 450 bar and a maximum pressure of 500 bar. These motors are versatile, suitable for both open and closed circuit applications.

A6VM Series Marine Hydraulic Motor Model Types Indication

Marine Rexroth Hydraulic Motor – A4FM Series

A4FM Series Hydraulic Motor Characteristics

• Output speed is directly proportional to the input flow rate and inversely proportional to the motor displacement.
• Output torque increases with the rise in pressure drop between the high and low-pressure sides of the motor.
• Known for its long service life and high efficiency.
• Compact design allows for use in specialized applications where the A2FM series dosing pump may not fit.

A4FM Series Marine Hydraulic Motor Technology and Structure Details

• Hydraulic Oil: Default use of HFD/mineral oil or HFA/HFB/HFC hydraulic oil for specifications 71-500.
• Axial Plunger Components: Quantitative with a swash plate structure.
• Working Mode: Motor.
• Specifications (cc/r): Available in sizes 22, 28, 40, 56, 71, 125, 250, and 500.
• Series: Series number 3 (for specifications 22-56, 125-500) or Series number 1 (for Specification 71).
• Rotation Direction: Reversible in both directions.
• Seal: Buqing rubber Q (shaft seal is fluorine rubber) or cyanide rubber.
• Shaft Extension: Available in four forms (splined shaft SAE, splined shaft DIN 5480, or straight shaft with paving DIN 6885).
• Mounting Flange: SAE-2 hole L (for specifications 22-56), 180 4-hole L (for specifications 71-250), or 1S0 3-hole (for Gauge 500).
• Working Line Oil Port: Oil port A/B at the rear with SAB metric fixed thread (for gauge 56-500) or oil port A/B at the side with metric fixed thread (for gauge 22-40, gauge 71-500).

Other Model Types Of Rexroth Hydraulic Motor We Supply
