The marine threaded butterfly valve is a type of flow control valve commonly used in marine and industrial applications. It is designed with threaded connections for easy installation and maintenance.
This butterfly control valve typically has a disc that rotates within the valve body to control the flow of fluid. The disc is connected to a stem, which can be operated using a handle or actuator.
| Size | DN50~DN150 |
|---|---|
| Pressure | PN10, PN16 |
| Body Material | Cast iron with nickel plated |
| End Connection | Threaded |

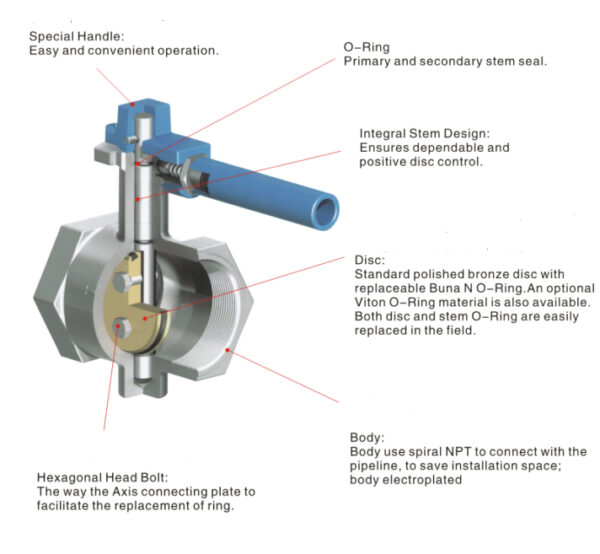

Key features of this flow butterfly control valve include:
Size/mm | Size/inch | A | B | C | D | E | F | H | S | Weight/kg |
DN50 | 2 | 105.41 | 57.15 | 203.2 | 53.98 | 107.95 | 76.2 | 87.9 | 2"-111/2NPT | 4.8 |
DN80 | 3 | 152.91 | 69.85 | 203.2 | 61.72 | 123.7 | 103.12 | 119.1 | 3"-8NPT | 7.1 |
DN105 | 4 | 161.04 | 93.73 | 203.2 | 65.02 | 130.05 | 134.87 | 155.7 | 4"-8NPT | 10.1 |
DN150 | 6 | 231.24 | 120.65 | 330.2 | 88.9 | 177.8 | 196.85 | 277.3 | 6"-8NPT | 21.8 |
