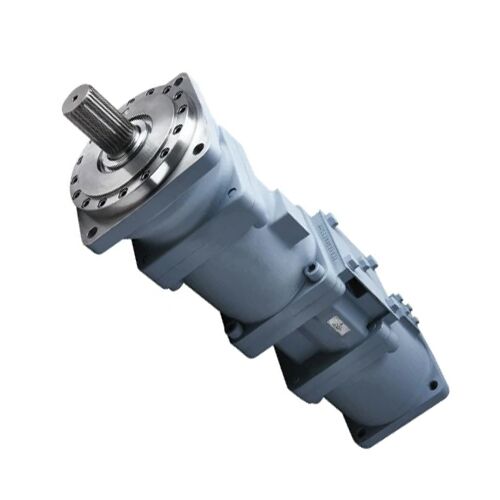

Marine Mitsubishi Hydraulic Motor

About product

Our company offers Mitsubishi Hydraulic Motors tailored for marine applications, including the MB350 series, AMC series, MKV series and TMK series. These marine motors are specifically designed to meet the demanding requirements of the marine industry, providing reliable performance and efficiency for various marine applications.

Marine AMC series model types: AMC-12A, AMC-15A, AMC-30A-0-31, AMC-30A-0-41, AMC-30A-M2, AMC-30A-M-31 Hydraulic Motor

TMK series model types: TMK-33A-M Hydraulic Motor

MKV series model type: MKV-23A-RFA-X10-L11 Hydraulic Motor

MB350 series model types: MB350BP125, MB350AS200BS091, MB350BP125+T40328 HMB270/P1/FM4, MB350BP100S198, MB350BP150B, MB350AS200BS127+CW300, MB350BP200S223 Hydraulic Motor

Additional information

Brand

Mitsubishi

Model Type

AM motor, TMK motor, MB350 motor

Product Detail

Marine Mitsubishi MKV Series Hydraulic Motor

We provide the Mitsubishi MKV Series Hydraulic Motor MKV-23A-RFA-X10-L11 as a genuine import from Japan designed for ship steering gear and anchor oil pump applications.

Mitsubishi AMC Series Hydraulic Motor

The Mitsubishi AMC Series Hydraulic Motor belongs to the AM motor category, with the “C” designation indicating its classification as a fixed motor type.

Marine AMC Motor Type Indication

We use the specific model type AMC-15A-O-41 as an example.

Type

Fixed / Variable

Volume Of Sweep (cm3/rev)

Series Code

Attachment

Shaft Forms

AM

C

-15

A

-O

-41

Mitsubishi AM motor

(C) Fixed motor

(12) 125 (15) 150

(A) A series

(O) Nil (M) Mechanical Brake

(11) Straight shaft with key (31) External spline shaft (41) Internal spline shaft

AMC Hydraulic Motor Specifications

We have available three types of AMC hydraulic motors: AMC-12A, AMC-15A, and AMC-30A.

Model

Displacement (cm3/rev)

Pressure / MPa

Pressure / MPa

Speed (min-1)

Speed (min-1)

Rated torque (kN/m)

Rated Output / Kw

Mass / kg

#rowspan#

#rowspan#

Rated

Max

Rated

Max

Rated

#rowspan#

#rowspan#

AMC-12A

125

27.5

34.3

1200

1600

0.51

63

41

AMC-15A

150

27.5

34.3

1200

1600

0.61

76

41

AMC-30A

300

27.5

34.3

1000

1200

1.22

127

77

AMC Hydraulic Motor Dimensions

AMC 12A & AMC 15A Hydraulic Motor

  • Involute Spline Data (45×16×2.5):
    • Center Setting Teeth Surface Number of Teeth: 16
    • Dislocation Coefficient: 0.800
    • Standard Pitch Diameter: 40.0
    • Tooth Profile: Low Teeth
    • Distance Between Over Pins: 49.277-0.129-0.217
    • Module: 2.5
    • Pin Diameter: 4.50
    • Pressure Angle: 20°

AMC 30A Hydraulic Motor

  • Involute Spline Data (55×20×2.5):
    • Center Setting Teeth Surface Number of Teeth: 20
    • Dislocation Coefficient: 0.800
    • Standard Pitch Diameter: 50.0
    • Tooth Profile: Low Teeth
    • Distance Between Over Pins: 59.446-0.135-0.228
    • Module: 2.5
    • Pin Diameter: 4.50
    • Pressure Angle: 20°

Marine Mitsubishi Hydraulic Motor Applications

  • Mitsubishi Hydraulic Motors in Marine Applications:
    1. AMC Series:
      • Application: Windlass operations
      • Function: Provides power for anchoring systems
    2. TMK-33A-M:
      • Application: Deck crane
      • Function: Offers precise control for lifting heavy loads on ships
    3. MB350 Series:
      • Application: Ship crane operations
      • Function: Ensures smooth handling of cargo and equipment on vessels
