Stud Link Anchor Chain For Ship

Category

About product

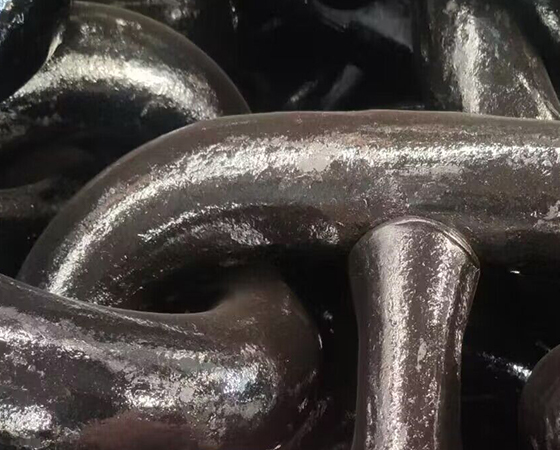

Composed of interconnected links, each adorned with cross-shaped studs, the stud link anchor chain offers enhanced resistance to deformation and fortified structural integrity. Meticulously crafted common links ensure secure and steadfast connections, making this ship anchor chain suitable for a wide range of maritime applications.

Ships depend on the stud link anchor chain to ensure steadfast mooring, even in adverse weather conditions and varying water depths. Its exceptional tensile strength and adept load distribution capabilities contribute to its formidable holding power, providing peace of mind to ship operators.

Additional information

Material

Hot-rolled anchor steel, CM490, and more
Grade:

U2, U3
Chain Diameter:

Customisable
Finishing

Hot Dip Galvanized, Black Painting
Ask for a quote

Product Detail

The stud link anchor chain is a commonly used and highly reliable marine anchor chain. It is primarily made of hot-rolled anchor steel or stainless steel, with diameters ranging from 2.5mm to 122mm. This anchor chain for ships is designed for secure anchoring of large vessels in challenging marine environments.

The surface of the stud link chain is typically coated with black asphalt, and hot-dip galvanized finishes are also available upon request. The chain can be cut to size as needed, allowing for customization. Each length of this marine anchor chain is marked with a unique identification number on the end link for traceability purposes.

The Features Of Stud Link Anchor Chain

  • High Strength: Stud link anchor chains are designed to withstand heavy loads and provide reliable anchoring capabilities for large vessels.
  • Center Pin Design: This ship anchor chain features a center pin inside each link, increasing strength, preventing elongation, and enhancing overall performance.
  • Traceability: Each length of the stud link chain is marked with a unique identification number on the end link, enabling traceability and quality control.
  • Easy Slipping: The inboard end of the chain cables can be securely attached to the ship’s structure, allowing for smooth and efficient deployment and retrieval of the chain.

The Accessories Of Stud Link Anchor Chain – Anchor Line

The anchor line is a vital accessory that complements the stud link anchor chain, enhancing the functionality and versatility of the anchoring system. Constructed from durable materials, such as nylon, it provides additional length and flexibility to accommodate varying depths and changing conditions. The anchor line acts as an extension, connecting the end of the ship anchor chain to the vessel, ensuring proper deployment and maintaining tension for effective anchoring. It serves as a safety measure, offering a backup connection in case of anchor chain failure, preventing drifting or loss of position.

How Long Should Your Anchor Line Be?

It is vital to ensure that your anchor line possesses the necessary strength and length to effectively anchor your ship. A practical guideline to follow is to have an anchor line length that is at least seven to ten times the depth of the water where you intend to set the ship anchor.

Testing Load & Chain Weight Of Stud Link Chain

The chain weight of the stud link anchor chain is a crucial consideration, as it directly impacts the anchoring capabilities of a vessel. Measured in kilograms per 27.5 meters, the chain weight ranges from 194 kilograms to 4976 kilograms, depending on the specific requirements and applications. This weight variation allows for the selection of an anchor chain that aligns with the vessel’s size and anchoring needs.

Additionally, the chain weight plays a significant role in determining the overall stability and holding power of the anchor system. A heavier marine anchor chain provides increased weight and stability, enhancing the anchor’s ability to remain securely embedded in the seabed. It helps to counteract external forces, such as wind and current, and reduces the risk of the anchor dragging or dislodging.

Diameter/mmProof Load(KN)Breaking Load(KN)Weight
AM1AM2AM3AM1AM2AM3kg/27.5m
17.589127179127179256194
20.5123175244175244349169
24167237332237332476370
28225321449321449642496
32291417583417583833635
384065818125818121160887
445387691080769108015401197
52739106014801060148021101661
58909129018101290181026002086
621030147020601470206029402360
731390199027901990279039903274
841800258036102580361051604334
902050292040902920409058404976

Anchor Chain Lenght Chart – Stud Link Anchor Chain

stud link anchor chain for ship

Chain SizeDimensions/inches
inchesmmABC
5/8163 3/42/ 1/413 3/4
7/8225 1/43 1/819 1/4
12563 9/1622
1 1/43271/24 1/227 1/2
1 5/8429 3/45 7/835 3/4
251127 3/1644
2 3/165613 1/87 7/848 1/8
2 1/26415955
2 3/47016 1/29 7/860 1/2
2 7/87317 1/410 3/863 1/4
3761810 13/1666
3 1/87918 3/41167 3/8
3 1/47319 1/211 11/1671 1/2
3 1/2902112 5/877
3 7/89823 1/41485 1/4
41022414 3/888
